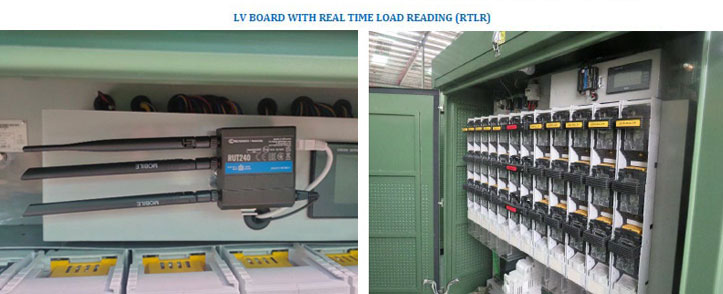

CSU SCADA READY & SCADA EQUIPPED RTLR
(Real Time Load Reading)

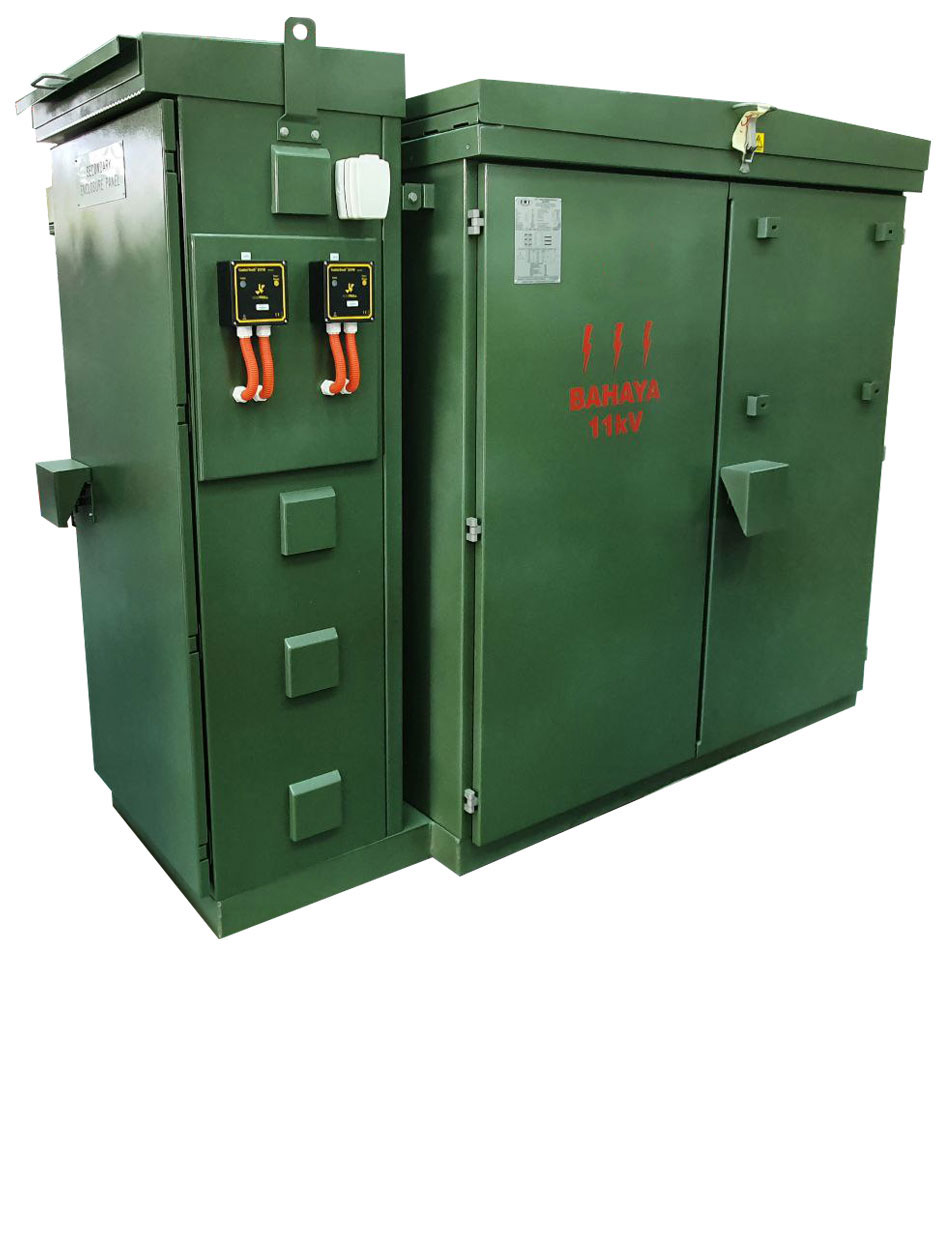

Compact Sub Remote Monitoring System (CSU RMS) has been designed to provide an easy installation and configurable metrology system. A series of electrical parameters such as 3 phases voltage, current, power, total energy, and demand for the feeder pillar is captured and logged into a mini database which is then extracted to data raw file or real-time data transfer. The system will be configured to measure all the load feeders by the Current Transformer. The entire proven working solutions can be suited perfectly into 800A and 1600A CSU requirement. The benefit of using this RTLR listed as follow:

• Improve our current energy meter reading system.
• Able to get an update immediately without having to wait at the end of the month.
• Integration automatic system via wireless application over network.
• Remotely monitor an electricity meter reading by using wireless system without worker going to residence.

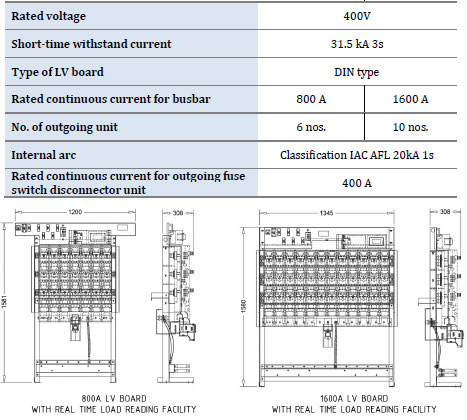

Technical Specification:-
