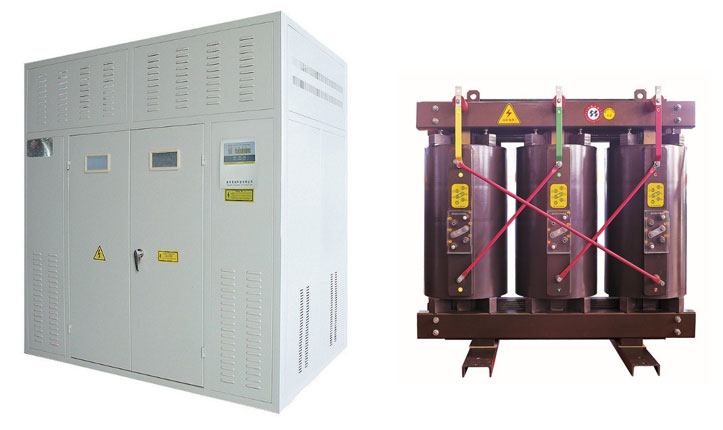

EWT Cast Resin Transformer (CRT) are designed based on latest standards to meet the sub stations requirements in urban areas especially in high rise buildings, public amenities with high population density. EWT CRT are equipped with:
- Enclosure IP20
- Temperature Controlling Device
- Air Force Cooling System
- Distribution Bar
Technical Specification:-
- Fully type tested with KEMA certificate and passed/comply with all the usual quality standards such as Fire Class (F1), Environmental Class (E2), Climatic Class (C2).
- Low losses, low partial discharge, low noise and strong capacity of heat resistant, 150% overload with cooling fan.
- Safe, flameproof and no pollution.
- Maintenance free, easy installation and low cost.
- LV & HV winding shall be insulation Class F & maximum temperature rise shall be limited to 100K at 40˚C ambient.
Technical Data:
Low Loss Type in accordance with JKR Specified Losses model ECRL
Low Loss Type in accordance with TNB Specified Losses model ECRL
Standard Loss Type Model ECRN
